How about a new road

In this example we want to build a road connecting the node 6 and 10, and we would like to simulate how the traffic flow would change with this road

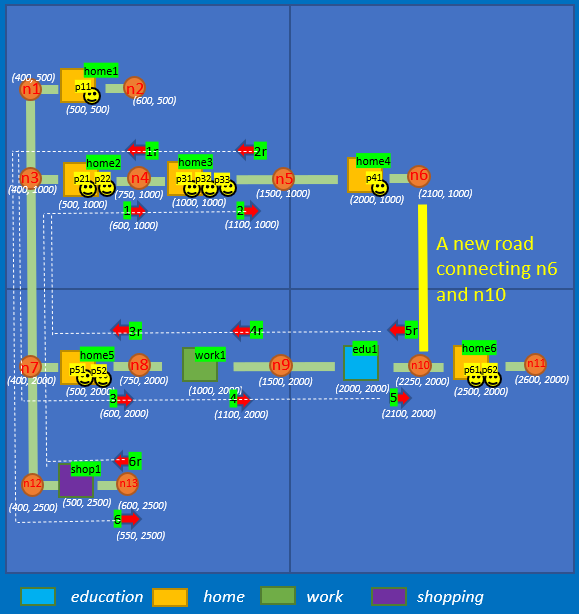

The new road to be built is shown below:

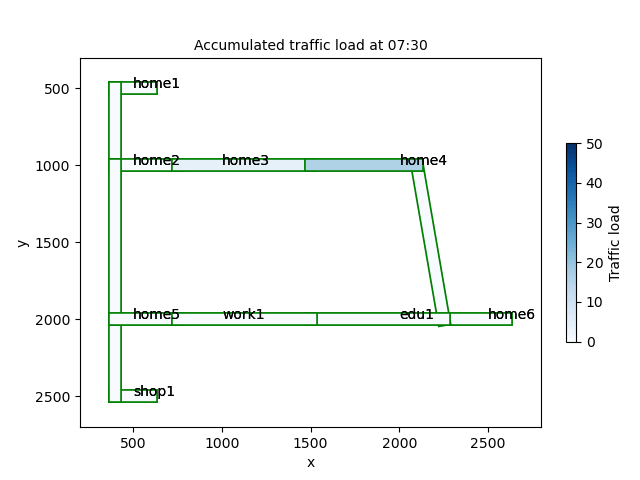

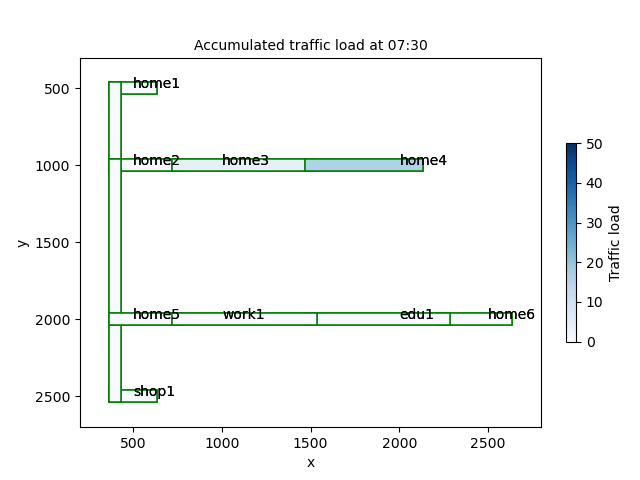

The accumulated traffic loads differences are shown below:

Of course many other analysis can be done. The codes for creating the above comparisons are:

from process.agent import (
   get_agent_movement,
   get_all_agents,
   select_agents,
   update_link_name_with_nodes,
)
from process.facility import get_facility
from process.network import (
   get_accumulated_traffic,
   get_link_density,
   get_links_with_the_same_nodes,
   get_network,
)
from process.plans import get_plans
from process.utils import get_diags_time_range, setup_logging, str2datetime
from process.vis.link_density import plot_link_density

# export PYTHONPATH=/home/szhang/Github/matsim-vis:$PYTHONPATH
# xml_path = "/home/szhang/Github/matsim-example-project/output/output_events.xml.gz"
plans_path = "data/example2/output_plans.xml.gz"
network_path = "data/example2/output_network.xml.gz"
facility_path = "data/example2/output_facilities.xml.gz"
diags_start_datetime = "07:30:00"
diags_end_datetime = "08:30:00"
output_interval_mins = 2
accum_traffic = True

logger = setup_logging()
output_path = "docs/source/without_new_roads.gif"

diags_start_datetime = str2datetime(diags_start_datetime)
diags_end_datetime = str2datetime(diags_end_datetime)

agents = select_agents(get_all_agents(plans_path))

logger.info("read all facilities ...")
all_facilities = get_facility(facility_path)

logger.info("read all networks ...")
all_links = get_network(network_path)

logger.info("get links with the shared nodes ...")
links_with_the_same_nodes = get_links_with_the_same_nodes(all_links)

logger.info("obtain time range ...")
all_times = get_diags_time_range(diags_start_datetime, diags_end_datetime)

agent_movements = {}
for proc_agent in agents:
   all_tasks, _ = get_plans(plans_path, proc_agent)
   agent_movements[proc_agent] = get_agent_movement(all_tasks, all_links)
   agent_movements[proc_agent] = update_link_name_with_nodes(
      agent_movements[proc_agent], links_with_the_same_nodes)



link_density = get_link_density(
   diags_start_datetime,
   diags_end_datetime,
   output_interval_mins,
   agent_movements,
   list(links_with_the_same_nodes.keys()))

if accum_traffic:
   link_density = get_accumulated_traffic(link_density)

plot_link_density(link_density, all_links, all_facilities, accum_traffic=accum_traffic, output_path=output_path, density_max=50.0)
